LONGT - China 12v 200w Photovoltaic Solar Cell Panel

High-level technologies are adopted to manufacture the product now. It is those technologies that contributes to the manufacturing of high-quality and multi-functional China 12v 200w Photovoltaic Solar Cell Panel.In the application field(s) of Solar Panels , the product is commonly seen and widely used.

SEND INQUIRY NOW

Max. Power:: 200w

Power Range:: 200w-250w

Number of Cells:: 72pcs

Material:: Polycrystalline Silicon

Customization:: Customized logo (Min. Order: 1000 sets) , Customized packaging (Min. Order: 1000 sets) , Graphic customization (Min. Order: 1000 sets)

shipping:: Ocean freight

SEND INQUIRY NOW

Product Details

After a long period of exploration,LONGT LIGHTING GROUP has launched China 12v 200w Photovoltaic Solar Cell Panel. At LONGT LIGHTING GROUP, it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. Under the leadership of our company's board of directors, LONGT LIGHTING GROUP have constantly upgraded our technologies and introduced high-end machines to continuously drive the market trend and improve product quality so as to satisfy every customer. Our aim is to become one of the most trustworthy enterprises in the market.

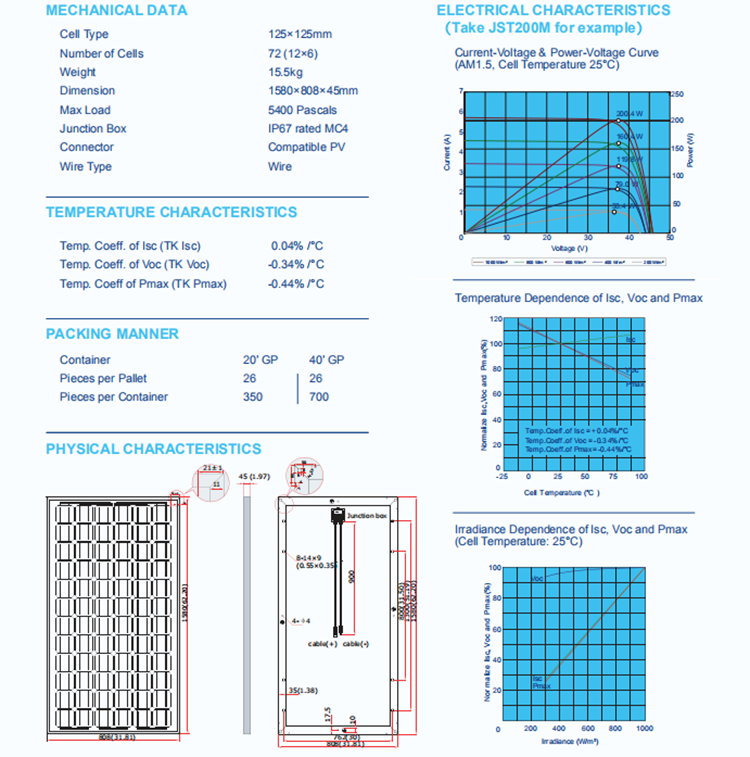

Brand Name	LONGT, OEM	Model Number	LSP-8-200
Place of Origin	Jiangsu, China	Cell size	/
Type	PERC	Panel Dimensions	158080845mm
Panel Efficiency	15.66%	Certificate	CE
Warranty	3 years, 3 years	Product name	china 12v 200w photovoltaic solar cell panel
Size	158080845mm	Cell Types	125*125mm
Weight	15.5kg	Max Load	5400 Pascals
Maximum System Voltage	1000V	Power Tolerance	0 to +5W
Application	City square, Station, Wharf, Warehouse, Highway, Stadium, Overpass.

Model Type	LSP-8-185	LSP-8-190	LSP-8-195	LSP-8-200	LSP-12-305	LSP-12-310
Peak Power(Pmax)	185w	190w	195w	200w	305w	310w
Module Efficiency	14.49%	14.88%	15.27%	15.66%	15.71%	15.97%
Maximum Power Voltage(Vmp)	37.4v	37.7v	38.0v	38.3v	38.9v	39.2v
Maximum Power Current(Imp)	4.94A	5.04A	5.13A	5.22A	7.84A	7.91A
Open Circuit Voltage(Voc) Short	45.1v	45.4v	45.7v	46.0v	46.7v	47.0v
Circuit Current(lsc)	5.58A	5.65A	5.72A	5.79A	8.60A	8.63A

Solar panel

Advantage:
High efficiency and transmission rate, low iron tempered glass,Manufacturing with IEC61215 standard
Types of solar panel:
Mono crystalline silicon & Poly crystalline silicon.

The features

The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the
module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the
cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
