The technologies are applied to the manufacturing process, some of which contribute to the high efficiency of New Energy 285 Watt Photovoltaic Solar Power Panel manufacturing and others ensure the stable and durable performance of the product.At present, the product is widely used in the field(s) of Solar Panels with its multi-functional characteristics.
LONGT LIGHTING GROUP boasts strong R&D capabilities and has been working on product development for years. New Energy 285 Watt Photovoltaic Solar Power Panel is our newly-developed product and goes on sale starting now. The accumulated rich experience and strong technological innovation capabilities have kept LONGT LIGHTING GROUP at the forefront of the market, and New Energy 285 Watt Photovoltaic Solar Power Panel developed have perfectly solved the pain points of the industry and the market. By gathering the elites in the industry together,LONGT LIGHTING GROUP aim to make full use of their wisdom and experience to develop and manufacture competitive products. Our great wish is to become a leading enterprise on a global scale.
| Brand Name | LONGT, OEM | Model Number | LSP-12-285 |
| Place of Origin | Jiangsu, China | Cell size | / |
| Type | PERC | Panel Dimensions | 1956*992*50mm |
| Panel Efficiency | 14.86% | Certificate | CE |
| Warranty | 3years, 3 years | Product name | New Energy 285 watt photovoltaic solar power panel |
| Size | 1956*992*50mm | Cell Types | 156*156mm |
| Weight | 23.5kg | Max Load | 5400 Pascals |
| Maximum System Voltage | 1000V | Power Tolerance | 0 to +5W |
| Application | City square, Station, Wharf, Warehouse, Highway, Stadium, Overpass. |

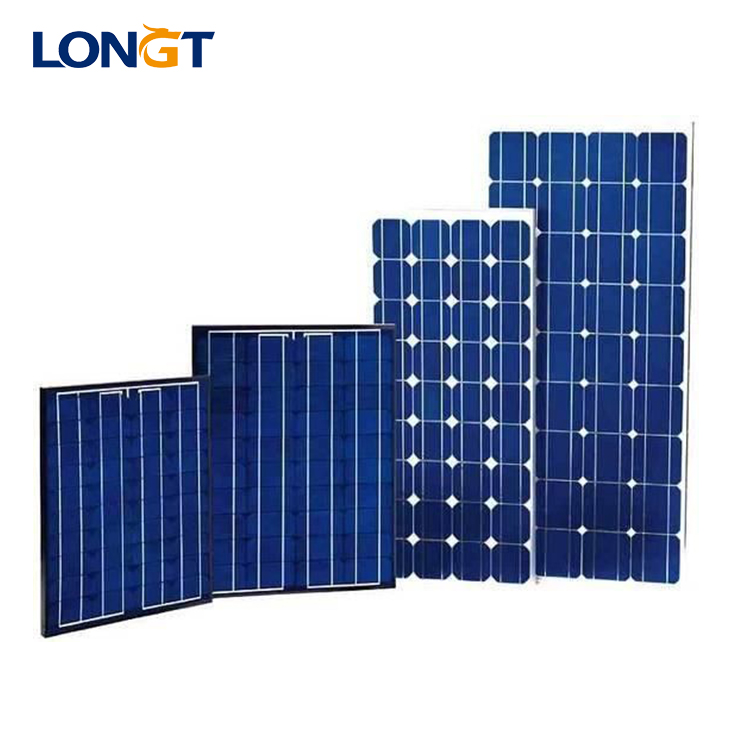

New Energy 285 watt photovoltaic solar power panel
Model Type | LSP-12-285 | LSP-12-290 | LSP-12-295 | LSP-12-300 | LSP-12-305 | LSP-12-310 |
| Peak Power(Pmax) | 285w | 290w | 295w | 300w | 305w | 310w |
| Module Efficiency | 14.86% | 14.94% | 15.20% | 15.46% | 15.71% | 15.97% |
| Maximum Power Voltage(Vmp) | 37.7v | 38.0v | 38.3v | 38.6v | 38.9v | 39.2v |
| Maximum Power Current(Imp) | 7.55A | 7.63A | 7.70A | 7.77A | 7.84A | 7.91A |
| Open Circuit Voltage(Voc) Short | 45.4v | 45.7v | 46.0v | 46.3v | 46.7v | 47.0v |
| Circuit Current(lsc) | 8.48A | 8.51A | 8.54A | 8.57A | 8.60A | 8.63A |
| Power Tolerance | 0 to +5W | |||||
| Maximum System Voltage | 1000v | |||||
| Nominal Operating Cell Temperature | 44.4±2°C | |||||
Maximum Series Fuse Rating | 15A | |||||
Advantage:
High efficiency and transmission rate, low iron tempered glass,Manufacturing with IEC61215 standard
Types of solar panel:
Mono crystalline silicon & Poly crystalline silicon.
The features
The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.
* The above configuration is only for reference and the actual configuration is designed according to the local climate conditions and the customer special requirements.
* We promise a guaranteed warranty for the entire system for three years, during which if there is any quality problem found, repair or replacement shall be provided free of charge, and a guarantee for life-long repair.
