LONGT LIGHTING GROUP can provide the most efficient services and Different-height Stadium Field Lighting Steel Led Ip65 High Mast Light Flood Lighting Poles with the highest quality and most affordable price. Different-height Stadium Field Lighting Steel Led Ip65 High Mast Light Flood Lighting Poles attaches great importance to technological innovation in the research and development process. LONGT LIGHTING GROUP will continually adopt positive marketing strategies to develop new markets, therefore establishing a more sound sales network. Moreover, we will reinforce the scientific research and try hard to gather more talents to focus on the research and development of new products. Our wish is to become one of the most competitive enterprises in the market.

Lamp Luminous Efficiency(lm/w)120Color Rendering Index(Ra)70
Support DimmerYesLighting solutions serviceLighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Lifespan (hours)50000Working Time (hours)50000
Input Voltage(V)220VLamp Luminous Flux(lm)80000
CRI (Ra>)70Color Temperature(CCT)3000-6000K
Beam Angle(°)120Working Lifetime(Hour)50000
Lamp Body MaterialAluminum AlloyIP RatingIP65
Place of OriginJiangsu, ChinaBrand NameLONGT, OEM
Model Number30MApplicationROAD
Working Temperature(℃)-35 - +65Light SourceLED, Halogen Bulbs
Warranty(Year)3-YearProduct nameled ip65 high mast light flood lighting poles
MaterialQ235A/Q235B/Q345/SS400Pole Height30m
Thickness4mm-10mmLamp400W-1000W HPS
Styleround shape/one sideTypehigh mast lighting
CertificationCCC

Products Description
Pole Height
Thickness
Lamp
Material
Shape
Advantage
15m
4-10mm
400-1000w HPS
Q235A/Q235B/Q345/SS400
round shape/one side
cheap , high quality, special design
20m
4-10mm
400-1000w HPS
Q235A/Q235B/Q345/SS400
round shape/one side
25m
4-10mm
400-1000w HPS
Q235A/Q235B/Q345/SS400
round shape/one side
30m
4-10mm
400-1000w HPS
Q235A/Q235B/Q345/SS400
round shape/one side
40m
4-10mm
400-1000w HPS
Q235A/Q235B/Q345/SS400
round shape/one side

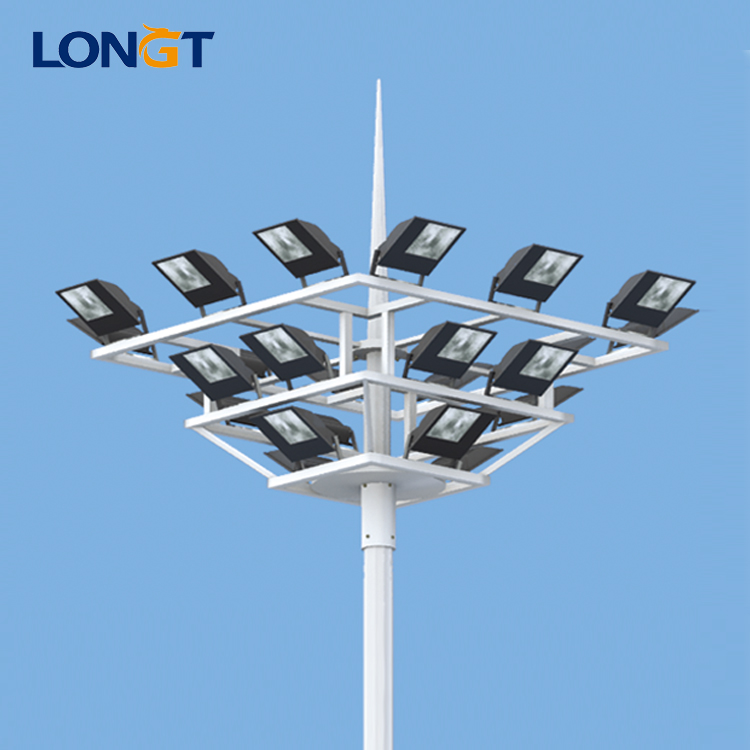

High mast light:

*Light source(bulb):400W/1000W High voltage sodium lamps/LED lamp/Metal halide lamp optional
*Rated voltage and frequency:220V(±10%),50HZ.
*Applications:City square, station, wharf, freight code, road, sports venues, overpasses, etc.
*Environment-friendly:lead-free,no-mercury,no fraigile glass,no environment harmful materials
*Energy saving effect:more than 75% electricity saving over conventional sodium light.

The classification of high mast pole light:

*Generally can be divided into lifting type and non lifting type.
The lifting type main rod height is generally more than 18 meters,the electric lifting operation is convenient.
*Lift type high mast lighting with two types of manual and electric lift control mode,
the lamp can safely down to 2.5 meters from the ground, convenient maintenance.
Manual remote control device lead line length of 10 meters, operators at 5 meters remote control lamp plate lifting,
so as to ensure the operator's personal safety.
*Seal level lift type high mast light for all IP65 international standards, to prevent dust and rainwater immersion,
ensure the service life of the bulb.

The configuration of high mast light:

1. The shape usually are dodecagon or octagonal conical pole, by high strength steel plate after cutting, bending,
automatic welding, the general height is 25m, 30m and 35, the maximum wind resistance design of up to 60 meters / second.
2. In the functional framework, but also to decorative materials mainly to steel, steel pipe, lamp post, lamp plate are hot dip
galvanizing.
3. Electric lifting system consists of electric motor, winch, three sets of hot dip galvanized steel wire rope and cable and so
on.
The inside of the lamp post is mounted with a lifting speed of 3 to 5 meters per minute.
4. The guiding and unloading system is composed of guide wheel and guide arm to ensure that the lamp plate does not move
transversely
during the lifting process. When the lamp plate is in place, the lamp plate can be automatically dropped and locked by the hook.
5. lighting electrical system is equipped with 6 to 24 lamps, 400 W, 1000 W, metal halide (white light), light and floodlight.
The computer time controller can automatically control the switching time, part lighting or full illumination,
6. lightning protection system: the lamp top is equipped with 1.5 meters long lightning rod,
the underground foundation is equipped with 1 1 meter long grounding wires and is welded with the underground bolt.
