PRODUCTS
VR
  • Products Details

Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture products. Its uses have been expanded to the field(s) of 80w High Lumen Solar Led Street Light. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of Solar Street Lights. In the future, LONGT LIGHTING GROUP will continue to provide customers with better service, and continue to focus on technological innovation, is committed to building a complete product system, to provide customers with more diversified products.

Place of OriginChinaBrand NameLONGT
ApplicationROADColor Temperature(CCT)5000K (Daylight)
IP RatingIP66Beam Angle(°)120
CRI (Ra>)75Lamp Luminous Efficiency(lm/w)120
Lamp Luminous Flux(lm)9600Warranty(Year)5-Year
Working Temperature(℃)-10 - 45Color Rendering Index(Ra)70
CertificationCQC, CCC, cePower SupplyBattery
Light SourceLEDSupport DimmerYes
Lighting solutions serviceLighting and circuitry design, DIALux evo layout, auto CAD layoutLifespan (hours)50000
Working Time (hours)50000Product name80w Solar street light
CertificateCE/RoHsSolar Panel18V
Charge time6 hoursLoad Power (W)120
Output Voltage (V)12V

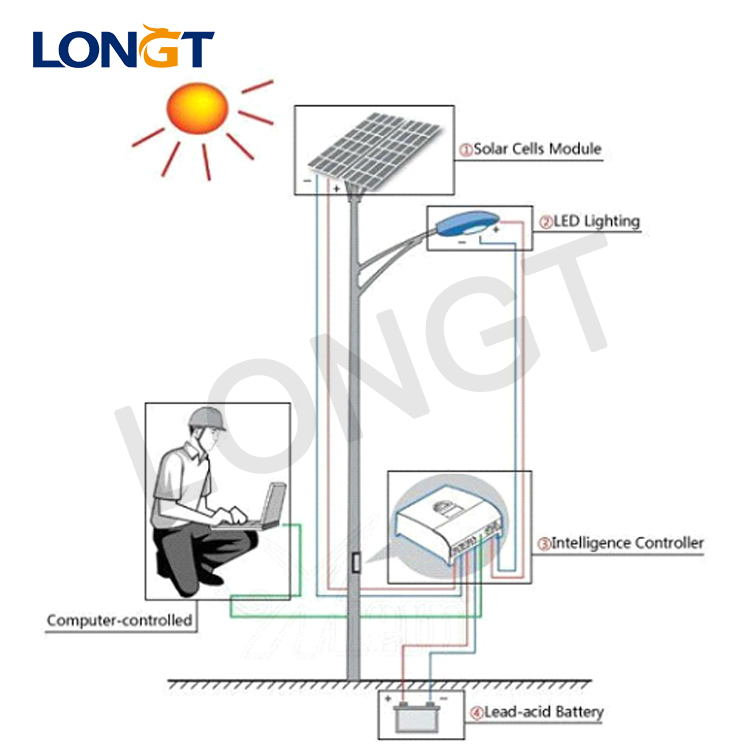

Products Description
Light source
80w LED Street Light, Bridgelux/Philips chip, 50000 hours life span, ≥9600 Lumens, 3 years warranty
Solar Panel
Polysilicon PV modular, 2pcs of 120w, 17%-19% convert rate, 10 years warranty
Storage Battery
Deep cycle gel battery, 2*150Ah capacitor, 3 years warranty
Controller
Intelligent controller, light control, time control, with overcharge protection, with remote control to turn on and off.

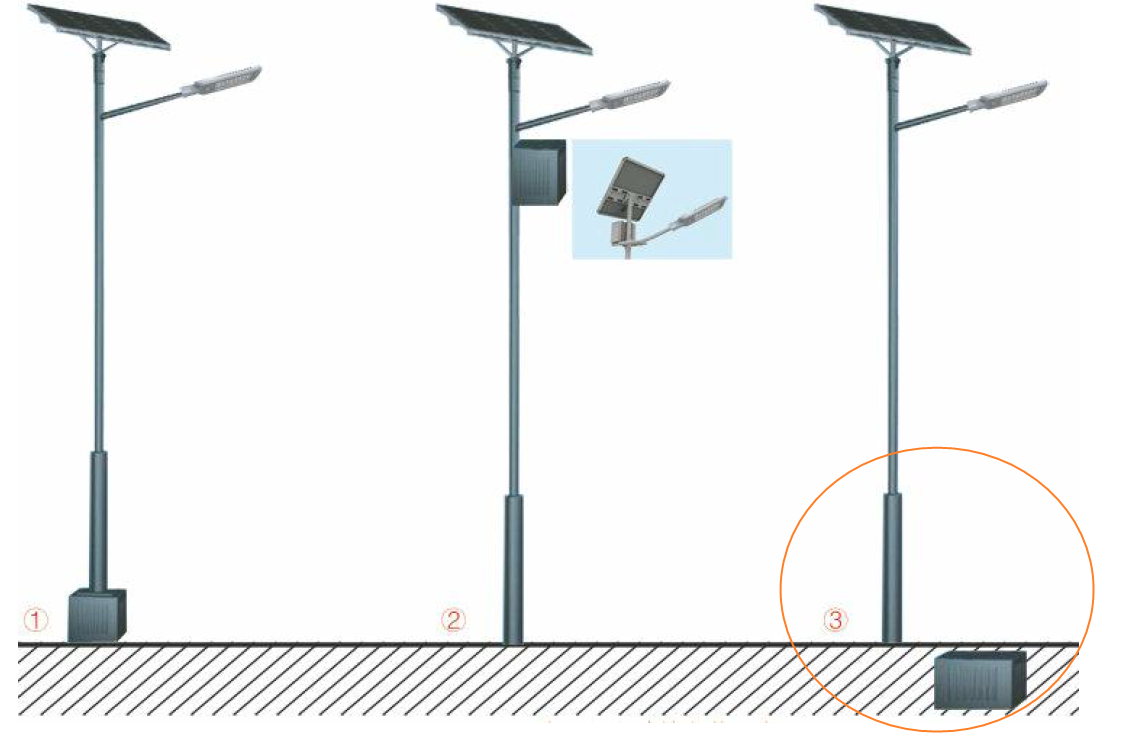

Battery box
Buried in the ground: ABS Plastic waterproof
Hang up on the pole: galvanized steel
Light post
Material: Q235, Height: 9m, thickness: 3mm, finishing: hot dip galvanized and power coated with RAL color, with base plate and
anchor bolts
Cable
2*2.5mm² copper cable

LED lamp

* Lamp Body: Die-Casting Aluminum. Corrosion Resistant
* Application with Polyester Substance in its Surface.
* Implement of Reflect: Made of High Purity Aluminum.
* Cover: High Strength and High Transparent Toughened Glass
* Fastener Bolt and Screws: Stainless Steel
* Arm Diameter: 48 - 60mm
* IP65

Pole

* Finish: Black; hot dip-galvanized (HDG) only; HDG plus powder coated
* Galvanization standard: ASTMA123/EN ISO1461
* Welding: AWS D 1.1/BS EN 1011-1,BS EN 1011-2
* Design: We have our standard pole with our design, OEM and ODM is also acceptable
* Package: Standard seaworthy
* Delivery time: with two weeks after confirm the order
* Thickness: 1mm to 4mm

Solar panel

* Monocrystalline Solar panel , efficiency of more than 18.5%
* Polycrystalline solar panel, efficiency of more than 17.8%
* A GRADE high efficient solar panel
* Hydrophobic layer with higher light absorption and minimal surface dust
* 10 years warranty for solar panels

Battery

* Low-internal resistance clapboard, low internal resistance, good battery capacity Self-discharging rate less than 3% every month
* Gassing rate of gelled batteries is only 5% of ordinary sealed batteries.
* The lifespan is greater than 1000 times at 25C°
